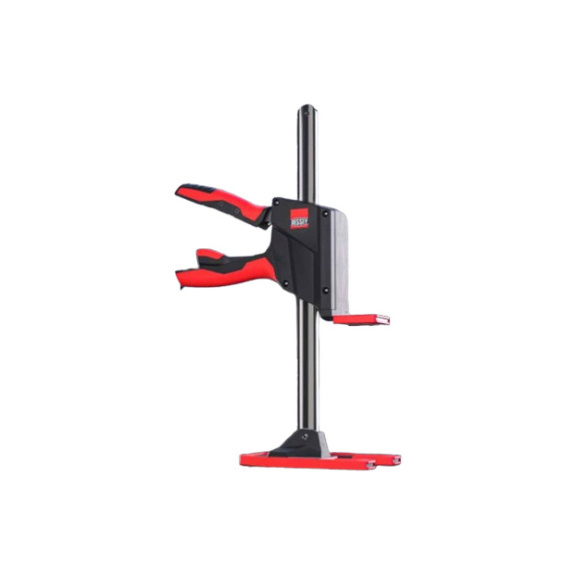

Lifting, lowering or levelling up to 180 kg.
Powerful and versatile:
The Beyceps enables assembly work with a load capacity of up to 180 kg. There are many possible applications in both the professional and DIY sectors.
- Large useful range of 5 to 230 mm when lifting or spreading (without protective cap).
- Quick, tool-free conversion for clamping, enables work with a useful range of 170 to 390 mm.
- For combining with the installation kit.
Protected work:
- The closed plastic housing protects the internal mechanism from dust, dirt and chips and prevents fingers from getting trapped.
- Protective caps for the stand and lifting plate prevent damage to floors and workpieces with delicate surfaces.
Technical features:
- Lifting force: 1,800 N/180 kg/400 lbs
- Lifting: up to 8 mm
- Lowering: up to 4 mm
- Useful area for lifting/spreading: 5-230 mm
- Useful area for clamping: 170-390 mm
- Rail: 22x8 mm
- Weight: 1,600 g
