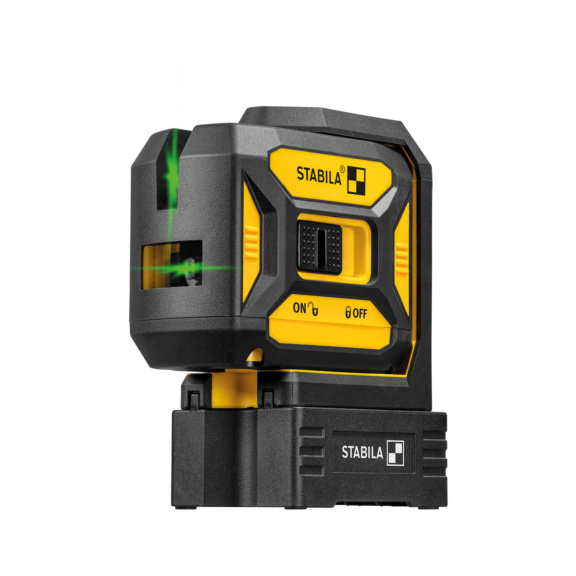

LAX 320G green cross line and plumb point laser
- 1 horizontal line, 1 vertical line, plumb-line dots upwards and downwards, visible up to 30 m.
- Fast self levelling using pendulum technology.
- Manual mode for laser positioning at any inclination.
- Versatile: Can be operated directly on the floor, fixed on a tripod or on metal objects.
- Softgrip coating for cushioning impacts.
- Compact swivel housing that protects the lenses.
- Scope of delivery: Laser base, target plate, wall bracket and belt pouch.
Technical specifications:
- Laser class: 2
- Power: < 1 mW
- Laser wavelength: 510-530 mm
- Self levelling range: approx. +/- 4°
- Levelling accuracy: +/- 0.3 mm/m
- Measuring range of visible line: 30 m2
- Operating time between charges: approx. 20 hours
- Protection rating: IP 54
