Terrace pedestal stone

RECA TT terrace pedestal stone, terrace construction, 80–140/10 KN

Art.-no. 0217099441
EAN 4029484925780
All versions

Prices for customers after login
Terrace pedestal stone

Art.-no. 0217099441

Prices for customers after login
Quantity
PU
x 50

Exclusively for trade customers

Register now and access more than 125,000 products

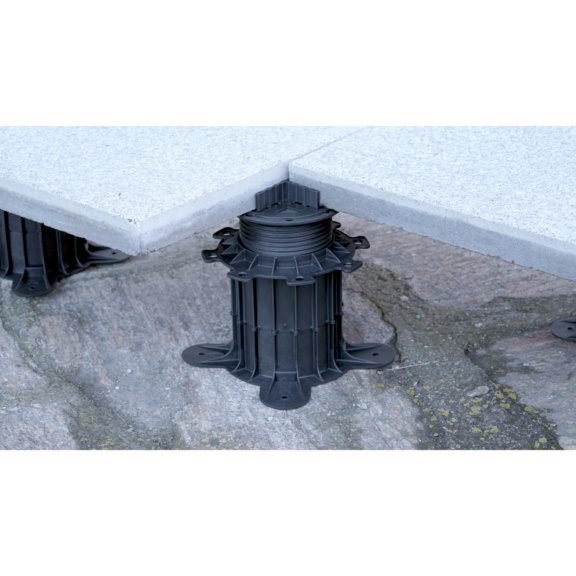

TT terrace pedestal stone facilitates laying terrace boards made of stone, concrete and ceramic. The regulating discs help to effortlessly balance out any irregularities on the terrace boards.

The X-shaped base plate can be installed in a variety of positions and has a secure footing. Its special shape enables positioning close to edges, e.g. on the edge of a wall, without any problems. The X-shaped base plate is even perfect for use with butt joints (substructure on substructure) and boasts advantages over conventional circular base plates. The high load capacity of the terrace pedestals is achieved through very thick walls and precisely formed thread and connection parts. This guarantees permanent and stable mounting of the substructure or terrace boards.

Large and stable support plate (dia. 120 mm)
Integrated height adjustment ring

Stone attachment for terrace boards with 3.2 mm gap between joints and integrated predetermined breaking points for wall, corner and composite laying

MATERIAL: Polypropylene PP compound in black - frost and heat resistance optimised for terrace construction

Application area:


Terrace construction - stone flooring

Field of Application:


The RECA TT terrace pedestal is used in terrace construction, gardening and landscaping.

Advice:


The spacer tab is included in the packing unit.
The level compensation automatically balances out gradients of up to 4 % in all directions.

Diameter

120

Min./max. height

80-140 mm

Content remark

Terrace pedestal + spacer tab
