Round pan head hammer rivet, aluminium/A2
Countersunk-head hammer rivet, 120 degrees, alu/A2, bore Ø 4.8-4.9, 4.8 x 25.0
Register now and access more than 125,000 products
Application area:
For attaching aluminium and sheet metal profiles, sealing strips, wall outlet profiles, roof edge profiles, chimney covers, wall copings, domed rooflights etc. onto masonry, concrete, hard plaster, wood in roofs and walls
For fastenings in vehicle, container and equipment manufacturing
Advantages:
- Saves time as easy to handle and quick to install
- Install with a hammer, no special tool required
- Can be used in various materials
- Can be used externally due to rustproof material components
- High clamping force, good resistance to vibration and shear strength
- One mounting part for many applications
 | |

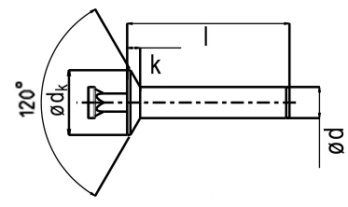

Head type | Countersunk head 60 degree |
Rivet diameter (d) | 4.8 mm |
Length (l) | 25 mm |
Min./max. grip range (steel) | 20.5-21.0 mm |
Min./max. drill diameter | 4.75-4.88 mm |
Min. drill diameter | 4.75 mm |
Max. drill diameter | 4.88 mm |
Embedding depth in solid brick (h s) | 20.0 mm |
Embedding depth in steel (h s) | 4.0 mm |
Min./max. grip range | 0.0-5.0 mm |
Drill hole diameter in stone | 5 mm |
Head diameter (dk) | 10.0 mm |
Head height (k) | 2.0 mm |
Tensile fracture load | 2000 N |
Shear-fracture load | 4500 N |
Material of mandrel | Stainless steel A2 |
Material of sleeve | Aluminium, AlMg 3.0 |
