Countersunk head screw, DIN 963 4.8, zinc plated
Countersunk head screw, DIN 963 4.8, galvanised, slot M6 x 20
Register now and access more than 125,000 products
Advice:
Do not use the screw in applications with direct exposure to the weather or in wet rooms with atmospheres containing chlorine gas.
 | |

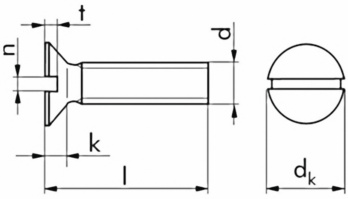

Thread type x nominal diameter (d) | M6 |
Length (l) | 20 mm |
Head height (k) | 3.0 mm |
Head diameter (dk) | 11 mm |
Internal drive | Slot |
Slot width (n) | 1.6 mm |
Drive depth (t) | 1.2 mm |
DIN | 963 |
Material | Steel |
Property class | 4.8 |
Surface | Zinc plated |
Thread type | Metric thread |
Form | Type A |
Nominal diameter | 6 mm |
